LG IP Control
Overview
This driver allows you to control LG professional displays (Digital Signage) from Zebrix Control.
In most cases, no specific configuration is required on the display side.
Network Requirements
For the driver to work, the Zebrix probe must be able to communicate with the LG displays.
| Source | Destination | Port | Protocol |
|---|---|---|---|
| Zebrix Probe | LG Displays | 9761 | TCP |
- Displays must be reachable over IP
- Port 9761/TCP must be open
Compatible Devices
The driver is compatible with LG devices supporting External Control (RS232C)
⚠️ Special case:
- LG set-top boxes (e.g., STB-6500) are partially compatible
- Power ON may not work remotely

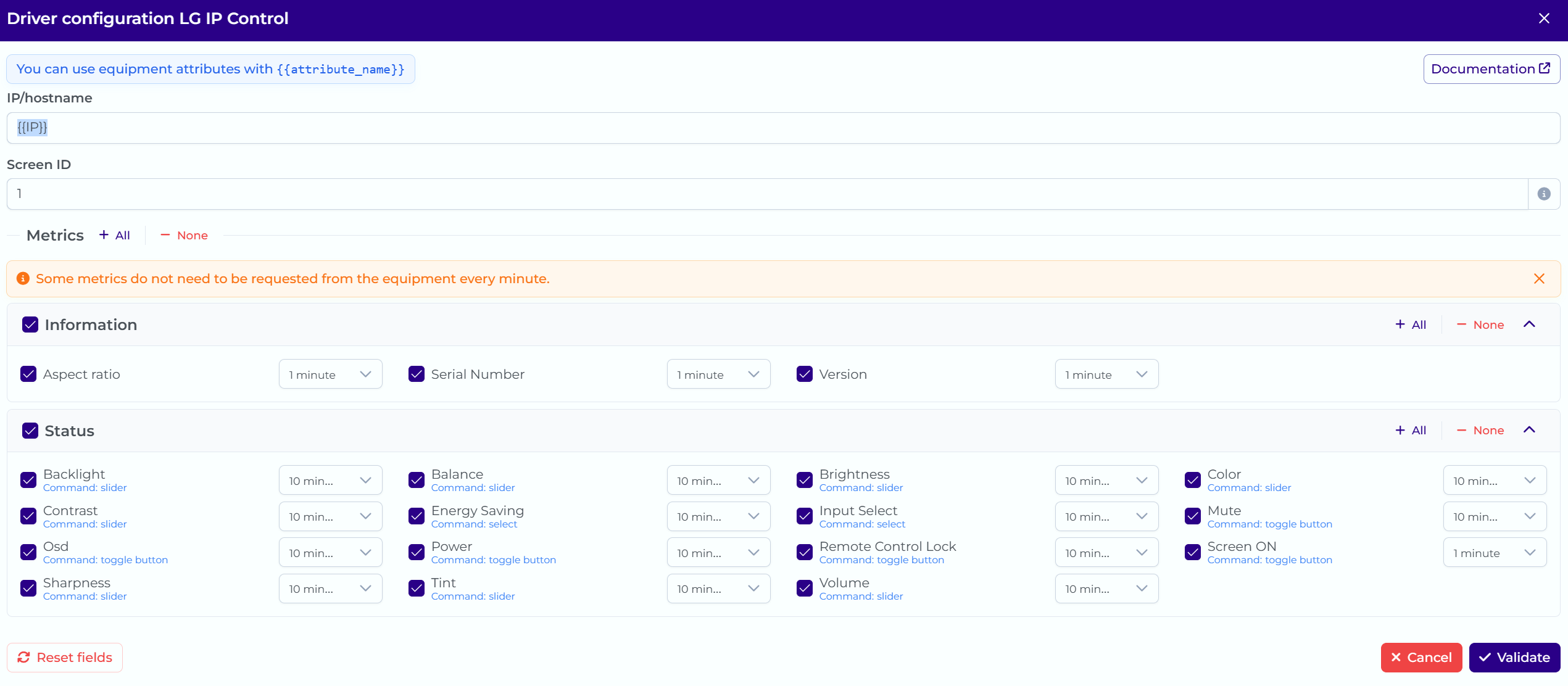

Display Configuration
In most cases, no action is required.
If needed, check:
- The display is connected to the network
- An IP address is configured
- The Set ID is defined (default: 01)
Features
The driver allows you to:
- Power the display ON / OFF
- Control volume and mute
- Change input source (HDMI, DisplayPort…)
- Retrieve display status
Limitations
- Power ON may not work on some devices
- Some features may vary depending on the model
Best Practices
- Use a static IP for displays
- Ensure port 9761 is reachable
- Prefer professional displays (Digital Signage)
